Anti-Drone Acoustic Sensor: High - Quality Microphone Array for Speech Enhancement & Precise Drone Sound Locating

SKU: 2026032601
0.0 (0)
0 Sold
$3,777.50 $3,950.00
A professional 64-channel microphone array (supporting up to 192 units) is designed for high-precision sound capture, with a particular focus on countering "black fly" drones such as FPV (First Person View) racing drones. It captures dynamic acoustic signals from low-altitude, slow-speed, and small-sized UAVs, enabling early warning, precise positioning, and tracking. With a bandwidth of 20Hz-20kHz, a positioning time of 100ms, and a 360° azimuth range, it offers reliable performance in sensitive areas. It is compatible with both industrial and smart home scenarios, making it an ideal choice for professionals and the security sector.
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
Download
  • High-Quality Microphone Array: Speech Boost & Drone Sound Locating
  • High-Quality Microphone Array: Speech Boost & Drone Sound Locating
  • High-Quality Microphone Array: Speech Boost & Drone Sound Locating
  • High-Quality Microphone Array: Speech Boost & Drone Sound Locating
1/1
  • High-Quality Microphone Array: Speech Boost & Drone Sound Locating
  • High-Quality Microphone Array: Speech Boost & Drone Sound Locating
  • Description
High-performance microphone array is innovatively developed to address the security threats posed by "black fly" UAVs such as racing drones and fiber optic racing drones, effectively solving the limitations of traditional radar and optoelectronic monitoring technologies (obvious low-altitude blind spots, high susceptibility to weather and light, low recognition rate for small targets). It accurately captures the dynamic acoustic signals of low-noise UAVs, realizing efficient early warning, high-precision positioning and real-time tracking, providing low-cost and reliable air defense security for sensitive areas such as airports, military management areas, large venues and core infrastructure. Below is the detailed parameter table and functional description:
Parameter
Indicator
Remarks
Microphone Unit
64 (max 192)
Support expansion
Sound Bandwidth
20Hz-20kHz
Adapt to UAV acoustic signal capture
Positioning Time
100ms
Real-time positioning response
Max Target Number
6-8
Ideal env't: 12 (units/aircraft)
Detection Distance
0-500m
AI technology can greatly improve the warning distance (under development)
3-Array Collaboration Accuracy
10m or 10% (whichever is larger)
Triangulation positioning
Multi-Array Networking Distance
2-5km
Greatly improve positioning and detection range
Positioning Accuracy
When UAV is hovering
Azimuth Angle
Max 360°
Full-range detection
Pitch Angle
Max 80°
Can reach -20° to 90°
Size
460*460*20mm
Compact and easy to deploy
Weight
<3.5kg
Lightweight and portable
Interface
USB/RJ45/Serial Port
Seamless connection with various systems
False Alarm Rate
<10%
AI recognition optimization
Recognition Rate
>90%
AI recognition technology

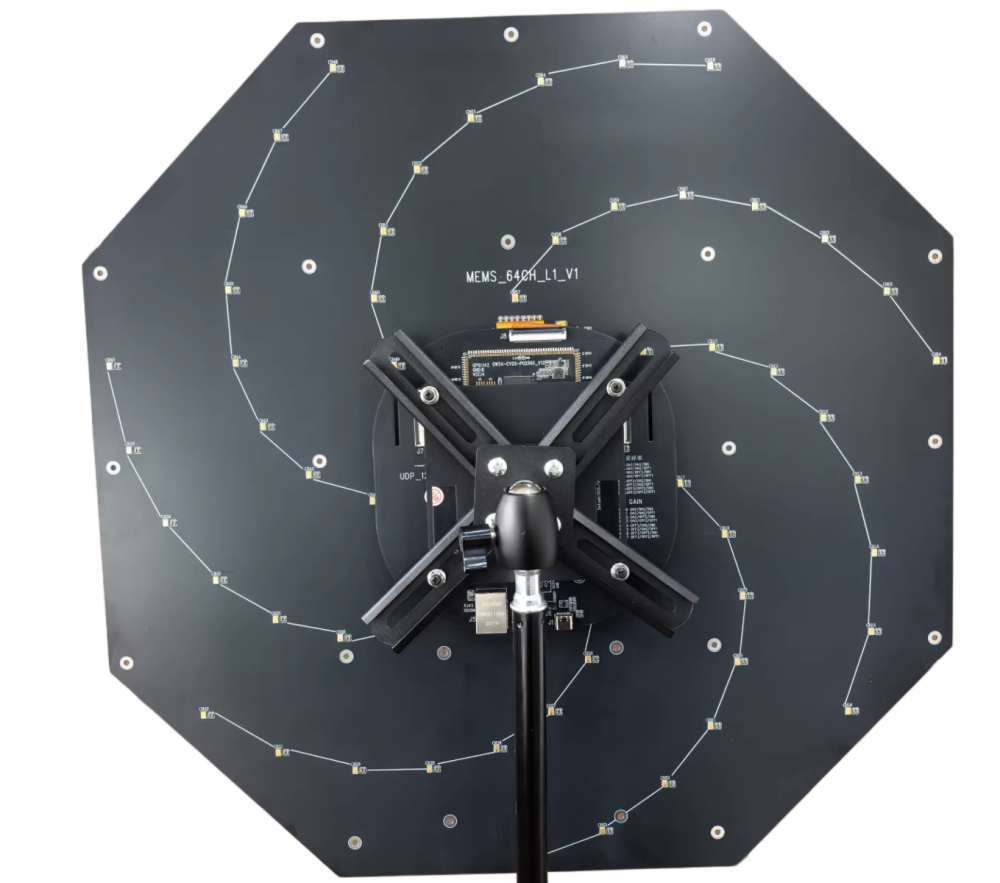

Multi-Arm Spiral Microphone Array Acquisition Kit

This kit includes

  • Microphone Array
  • USB Camera
  • USB / Gigabit Ethernet Acquisition Board

Functions

Transfers MEMS audio data to PC via USB or UDP Transmits video to PC via USB PC algorithm for sound source localization Overlay localization results on video feed

Microphone Array Specifications

Microphone channels 64 channels
Array diameter 460 mm
Arrangement multi-arm spiral
Frequency range 20 Hz – 80 kHz
Recording SPL 30 dBSPL ~ 120 dBSPL
Microphone sensitivity -36 dBFS

USB Camera Specifications

Sensor IMX298
Video format 1080P @ 30 fps

Acquisition Board Specifications

Interface USB / Gigabit Ethernet UDP
Sampling rate 192 kHz
Bit depth 16 bit
Data format PCM
Sampling mode synchronous sampling

Technical Support

  • Recording software to capture and save 64-channel MEMS data as multi-track WAV files
  • API provided for custom MEMS data acquisition
  • Demo program with sound source localization
  • Demo video available upon request
