DD075CCT Three-Light AI Visual Tracking Module
DD075CCT Three-Light AI Tracking Module
OTOMO Semiconductor | AI Visual Tracking & Thermal Imaging Module Solutions
DD075CCT AI Vision Module for Smarter Operations
OTOMO develops the DD075CCT as an AI visual tracking module with object recognition for drone platforms, security systems and industrial monitoring projects. The product combines visible-light imaging, long-wave infrared sensing and thermal detection for all-weather target awareness, while supporting custom AI tracking module integration for OEM and system integrator projects.
DD075CCT Module Video Overview
This video area presents OTOMO DD075CCT as an AI tracking module for drones, combining visible-light imaging, long-wave infrared sensing and thermal detection in one compact product display section.
- Shows the module structure, tracking-view concept and multi-sensor layout for custom AI visual tracking system projects.
- Helps you evaluate DD075CCT for drone platforms, security systems and industrial AI tracking projects before product integration.
- This can help you understand the actual imaging performance, tracking response and multi-sensor coordination for drones, security or industrial projects.
Integrated Core Features
Artificial Intelligence Vision System
AI visual tracking module with object recognition for autonomous recognition, intelligent locking and multi-target tracking powered by deep learning algorithms.
Thermal Imaging Module
Industrial grade thermal imaging module with 8-14μm long-wave infrared detection for smoke, haze and low-visibility conditions.
Drone Detection Solution
AI tracking module for drones, FPV visual guidance and anti-drone system integration in compact payload designs.
Acoustic Detection Technology
Combined multi-dimensional detection to improve target capture accuracy in security, UAV and perimeter monitoring systems.
Smart Security Platform
Thermal imaging module for security, public safety, border patrol and critical infrastructure protection projects.
Target Detection & Recognition Range

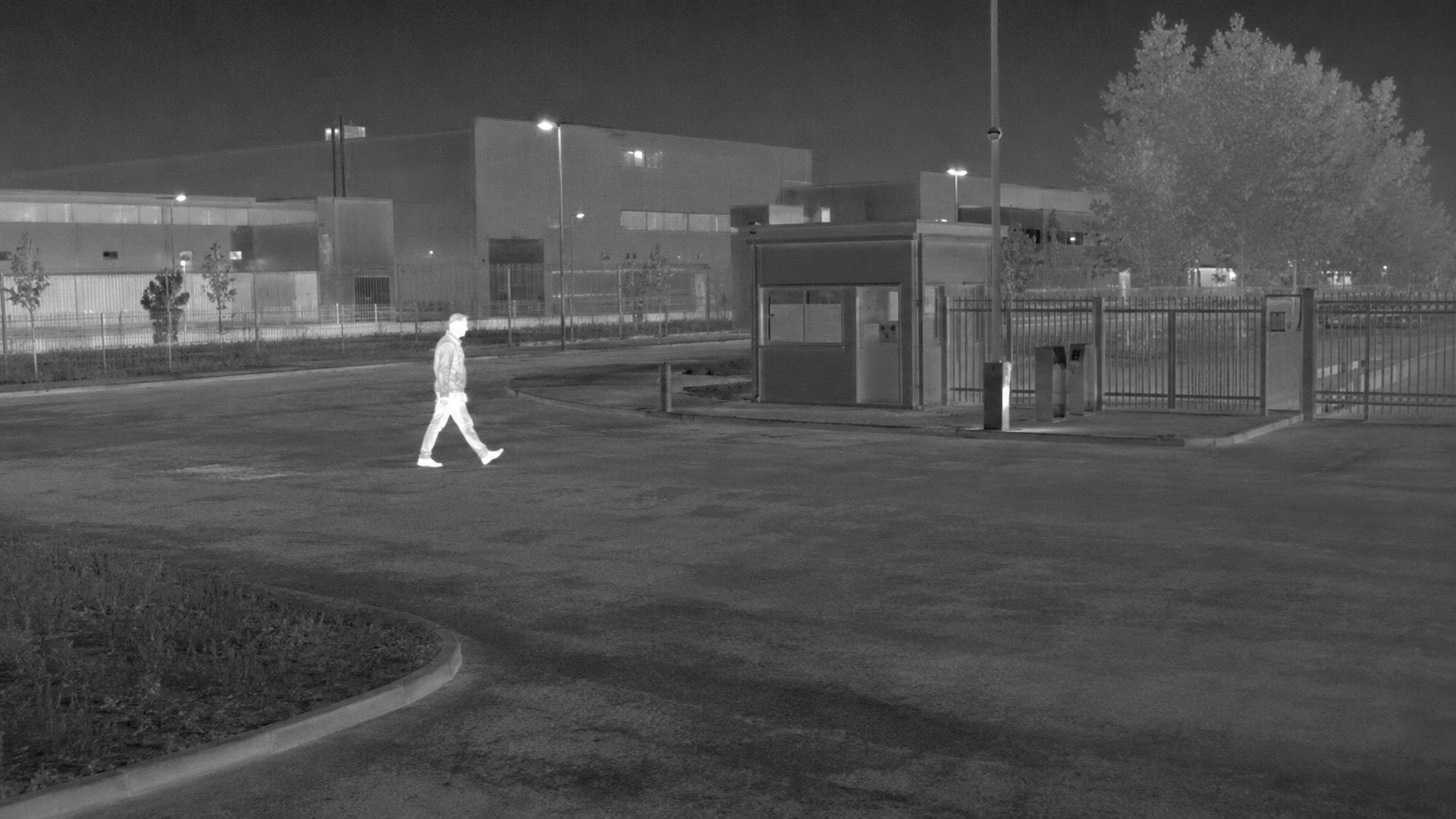

500mHuman Detection
Thermal imaging module for security monitoring of walking personnel around industrial entrances and perimeter zones.

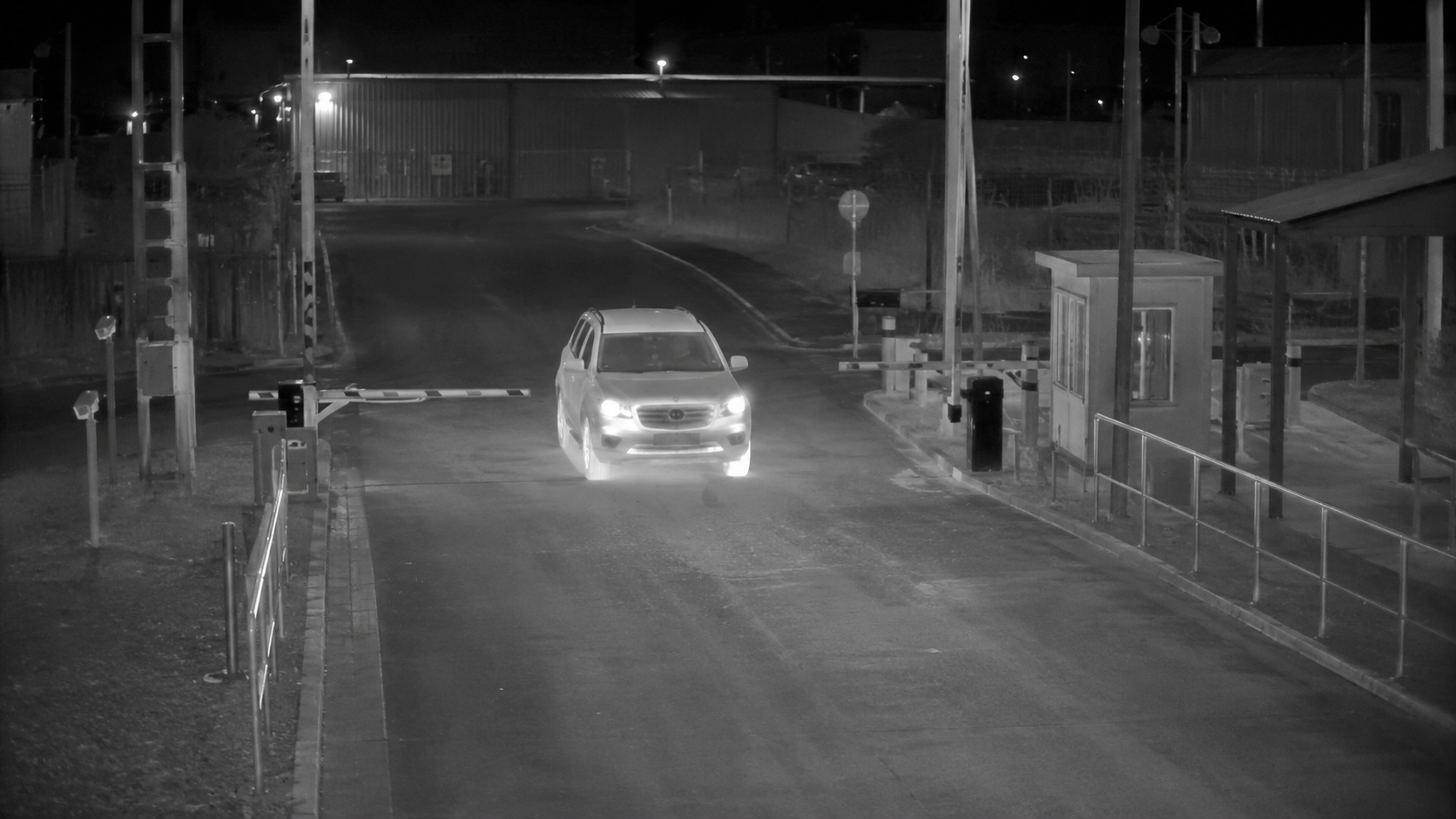

800mVehicle Detection
Infrared observation for checkpoint monitoring, moving vehicles and road access control in industrial AI tracking system deployments.

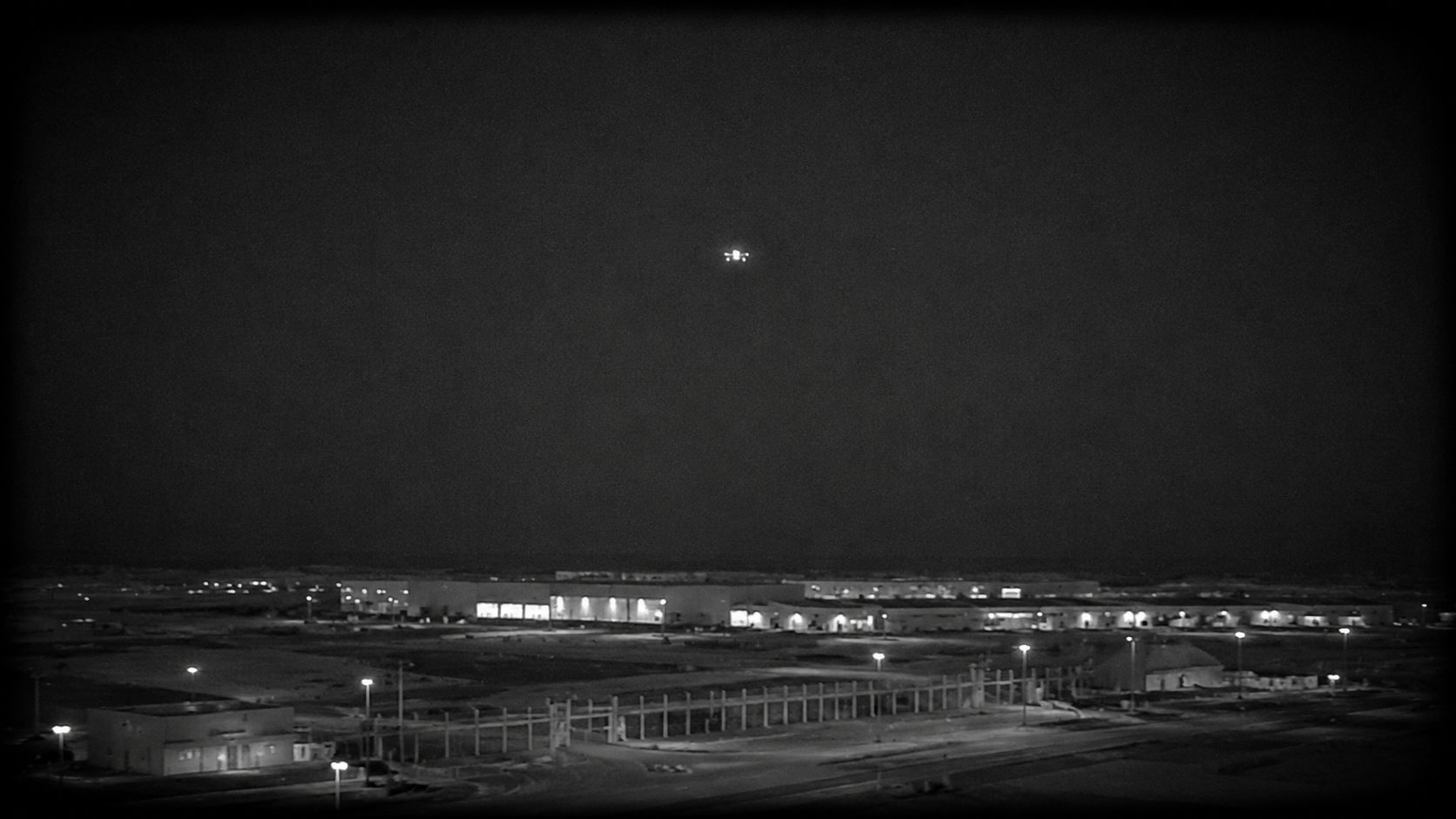

400mMulti-Rotor UAV Detection
Long-wave infrared tracking for small UAV targets, supporting AI tracking module for drones and perimeter airspace monitoring.

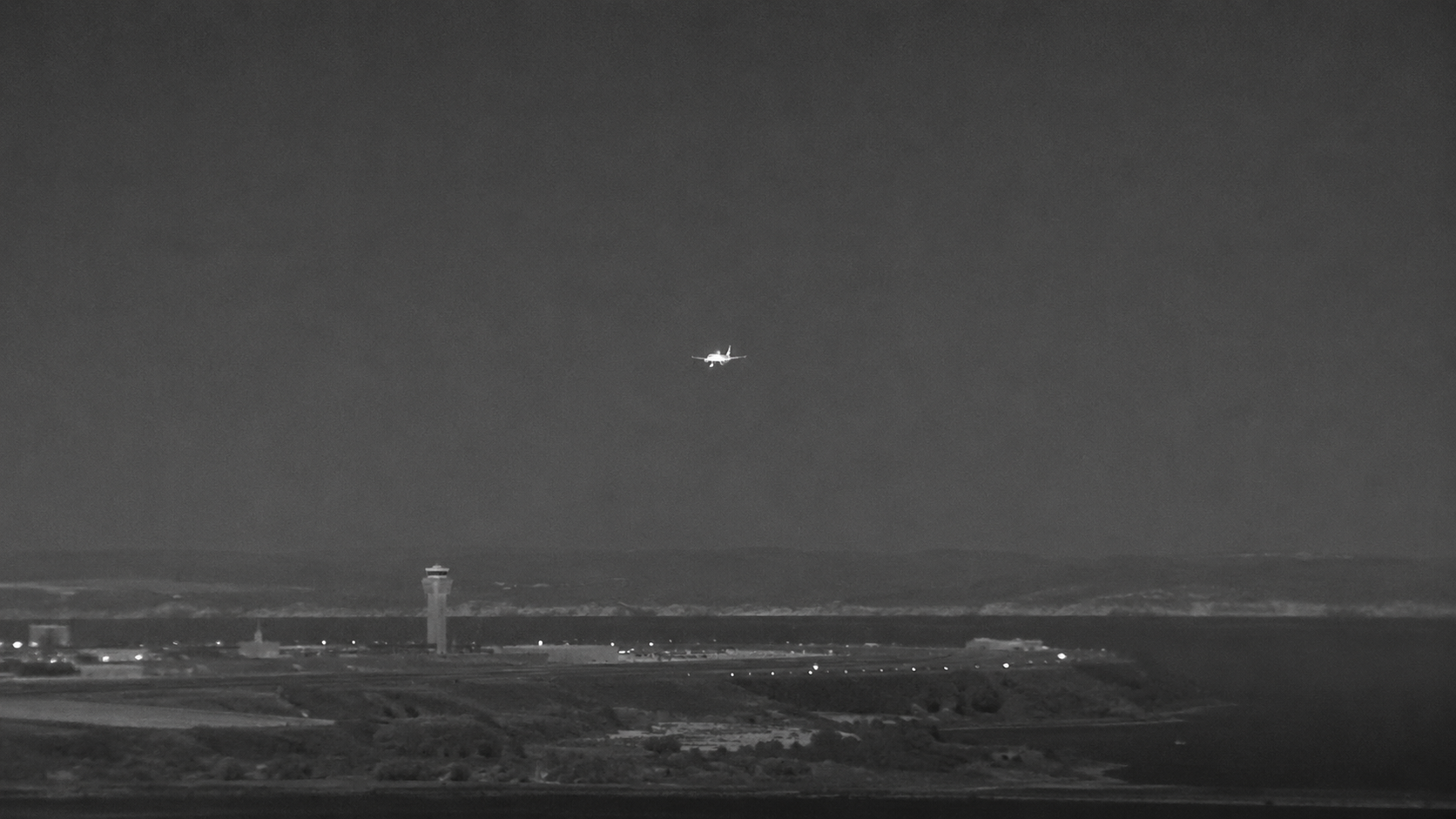

Up to 1200mFixed-Wing Aircraft Detection
Stable long-range thermal observation for fixed-wing aircraft and perimeter airspace monitoring.
Detection Distance Summary
DD075CCT combines AI visual tracking, long-wave infrared sensing and thermal imaging to support human, vehicle, UAV and fixed-wing aircraft recognition across different monitoring distances.
| Target Type | Effective Detection Distance |
|---|---|
| Human | 500m |
| Vehicle | 800m |
| Multi-Rotor UAV | 400m |
| Fixed-Wing Aircraft | Up To 1200m |
Full Technical Specifications
DD075CCT Three-Light AI Tracking Module
OTOMO designed the DD075CCT with a long-wave infrared camera, a long-focus visible-light camera, and a short-focus visible-light camera in one lightweight multi-sensor product for AI-assisted tracking, thermal detection, drone-mounted observation and custom AI visual tracking system integration.
Long-wave Infrared Camera
- Response Band: 8-14μm
- Pixel Size: 12μm
- Detector Pixels: 384×288
- Optical Focal Length: 10mm
- Angle of Field: 16.9°(H) × 12.8°(V), ±5%
- Video Resolution: 384×288@50fps
Long-focus Visible-light Camera
- Sensor Type: 1/3.52" CMOS
- Pixel Size: 2.2μm × 2.2μm
- Optical Focal Length: 16.26mm
- Angle of Field: 14.8°(H) × 8.4°(V), ±5%
- Video Resolution: 1920×1080@50fps
- Use: Long-distance visual observation for AI tracking module for drones
Short-focus Visible-light Camera
- Sensor Type: 1/4" CMOS
- Pixel Size: 2.7μm × 2.7μm
- Optical Focal Length: 1.75mm
- Angle of Field: 113.1°(H) × 63.6°(V), ±5%
- Video Resolution: 1280×720@100fps
- Use: Wide-angle, ultra-low-latency tracking for object recognition
System & Environmental Parameters
- Total Weight: Servo + Tracker: 56±2g; Camera part: 43±2g
- Target Location Accuracy: CEP 10 Meters
- Working Temperature: -20℃ ~ +55℃
- Storage Temperature: -45℃ ~ +60℃
- Working Environment: Support light rain operation
- Power Supply: DC10.8V~26.4V@3A
- Power Consumption: Less than 7W, stable
- Output Interface: Network video, analog video, TTL serial port; supports project-level protocol and firmware adaptation
- Max Tracking Speed: 120km/h moving targets
- Max Recognizable Targets: 50 targets
Application Scenarios
OTOMO DD075CCT three-light AI tracking module is used for security & surveillance, border & coastal patrol, emergency response, search & rescue, industrial inspection, agriculture monitoring, critical infrastructure protection, smart surveillance systems and integrated drone detection solutions. The product supports FPV drone vision modules, anti-drone visual guidance, AI visual tracking for robotics and thermal imaging module for industrial inspection, providing all-weather and high-precision sensing support for various industries.
Security & Surveillance
Industrial entrance monitoring with AI-assisted visual tracking, thermal imaging module for security and all-weather perimeter awareness.
Border & Coastal Patrol
Long-distance observation for coastal roads, boundary lines and remote moving targets in open environments.
Emergency Response
Thermal-assisted scene awareness for emergency vehicles, rescue teams, smoke areas and low-visibility incidents.
Search & Rescue
UAV-supported search coverage for mountain, forest and remote-area rescue with visible and thermal target cues.
Industrial Inspection
Industrial thermal imaging module support for pipelines, power equipment and plant structures where abnormal heat needs fast recognition.
Agriculture Monitoring
Low-altitude UAV monitoring for farmland, orchard and greenhouse areas with wide-area visual scanning and AI tracking support.
Critical Infrastructure Protection
Perimeter awareness for substations, airports, ports, communication towers and high-value facility boundaries.
Smart Surveillance Systems
Multi-point monitoring for smart parks, roads, parking zones and entrances with industrial AI tracking system and AI target recognition support.
Integrated Drone Detection Solutions
Airspace monitoring for multi-rotor UAV discovery, infrared capture and visual tracking, suitable for AI tracking module for drones and drone detection solutions.
Custom Service & Cooperation
OTOMO provides DD075CCT with OEM/ODM support for system integrators, drone manufacturers and security solution providers that need a compact multi-sensor tracking module for real project deployment. The product supports custom AI tracking module projects, OEM AI visual tracking system cooperation, ODM thermal imaging module development and thermal imaging module with custom firmware requirements.
Requirement Confirmation
Confirm target scenario, payload platform, interface, power supply and AI tracking module customization service requirements.
Technical Matching
Match visible-light, long-wave infrared and industrial grade thermal imaging module parameters to the project environment.
Sample & Integration Support
Support sample testing, integration feedback and follow-up cooperation for OEM/ODM and batch deployment projects.
